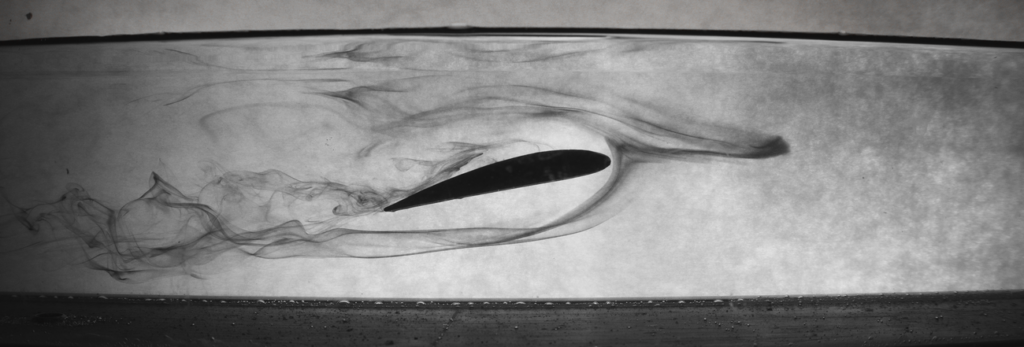

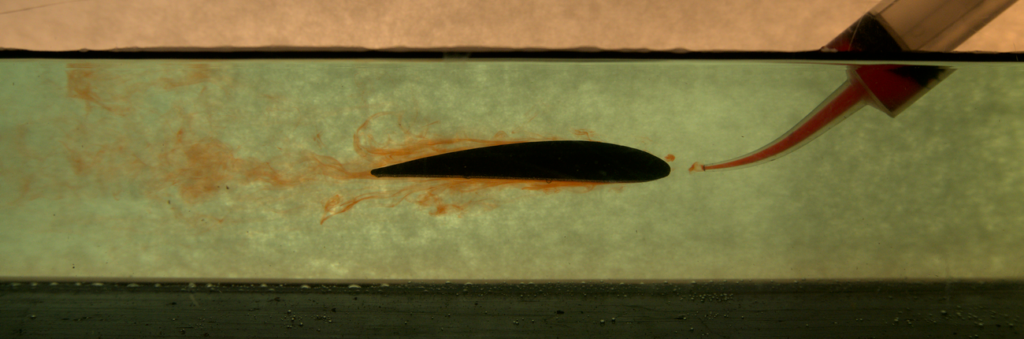

This is an image of a green food coloring dye injected in a water filled flume passing over a submerged airfoil. The airfoil is attached to the far side of the flume from the camera. The dye was diluted with water and injected into the flow path via a needle syringe which was removed before the image was captured. The flow in this image was relatively slow in order to produce a low Reynolds Number in the water, producing a more laminar flow of dye and water around the airfoil which better visualizes the fluid boundary layers and velocities around it.
